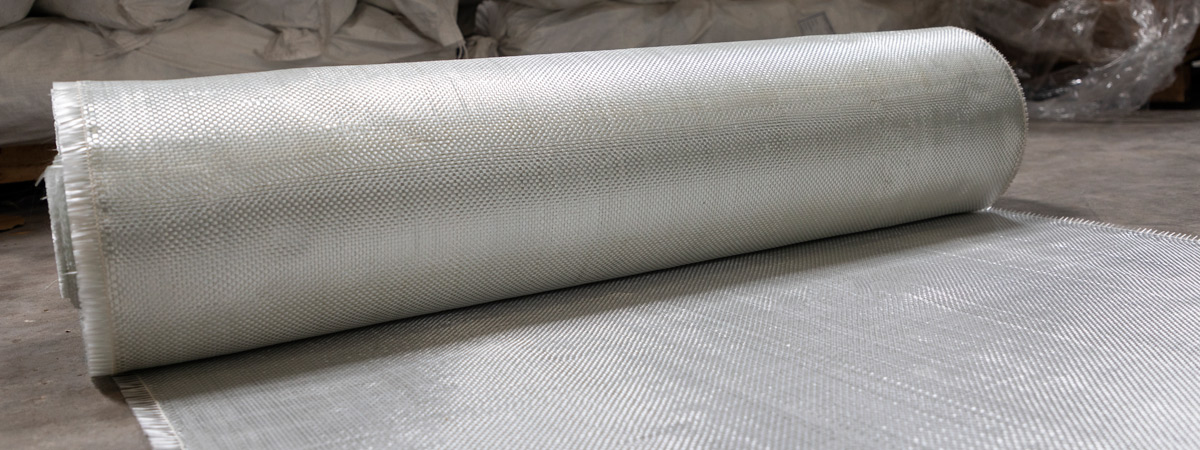

Woven Roving

Woven roving is a reinforcement made from direct, texturized fiberglass roving woven into a fabric or a tape. Typically, the glass fibre content is a suitable sizing for multiple resin systems such as unsaturated polyester and epoxy resins; Great for multilayer hand layup applications, woven roving fabrics provide the most economical solution for raising glass content of laminates and increasing overall laminate flexural and impact resistance without adding thickness, weight, or other non-reinforcing materials.

Methods of Use & Processes

  • Hand lay-up
  • Pre pregging
  • Compression molding
  • Winding
  • Scrimp
  • Centrifugal casting
  • Pultrusion
  • Vacuum molding
  • RTM

Description

  • The input rovings are designed to give controlled wet-out and excellent laminate properties.
  • The construction gives bi directional (0°/90°) reinforcement and the strength of continuous filaments.
  • Woven roving can be of different GSM starting from 200 – 2400.
  • Woven roving fabrics are designed to be compatible with multiple resin systems and can be customized to meet specific product requirements
  • Assorted weave patterns and preferential fiber loading.

Features

  • Lower finished part cost
  • Excellent laminate properties and cost-effective reinforcement
  • Easy handling
  • Rapid wet-out and fast application
  • Design flexibility and engineered strain values
  • High-impact response
  • Free of Fuzz, Dirt, Impurity and other stains
  • High Mechanical Strength and high wet strength retention

Benefits

Delivers cost-effective solutions for particularly large parts such as boat hulls and high-durability laminates such as underground storage vessels

Applications

Marine

Chemical storage Vessels

Hand lay-up

Electrical Laminates

insulation
